Midi USB host MK3 USB to Midi interface.

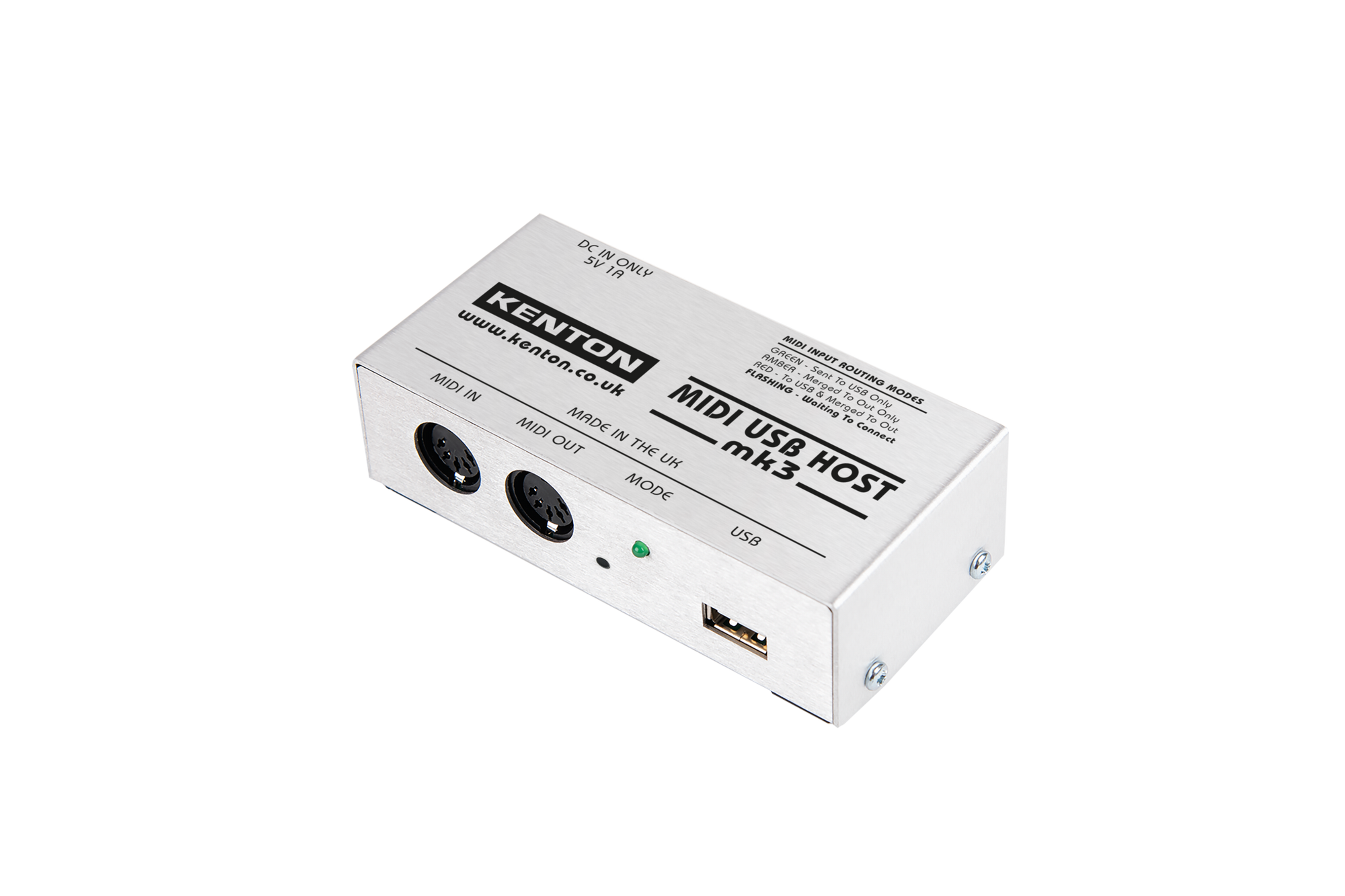

Kenton Midi USB host MK3

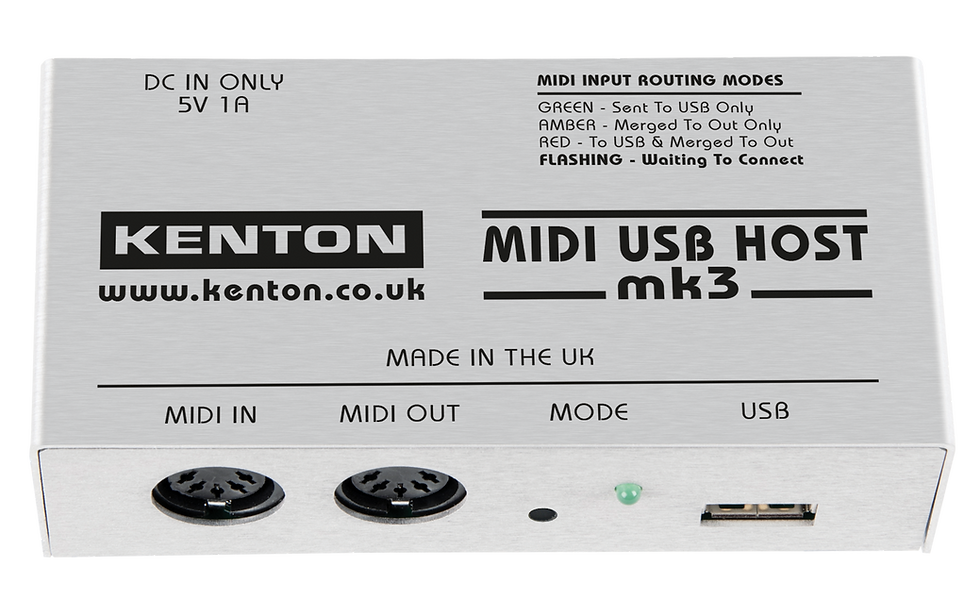

Provides MIDI In & Out sockets for USB MIDI keyboards and controllers which have only a USB B type socket. For example, used with a USB-Solo, it allows the USB-Solo to be used in a standard MIDI setup, just like a Pro-Solo. It has a USB Host port (USB A type socket), a MIDI In and a MIDI Out (both 5 pin DIN). The MIDI USB Host mk3 now has additional features. In addition to the standard operating mode, there are now two further modes.
Standard mode (LED Green): MIDI data received at the MIDI In socket is sent to the USB device and MID data from the USB device is sent to the MIDI Out socket.
Merge 1 mode (LED Amber): MIDI IN does not go to USB device but instead is merged with MIDI data coming from the USB device which is then sent to the MIDI Out socket.
Merge 2 mode (LED Red): MIDI IN data is sent to the USB device & is also merged with MIDI data from the USB device which is then sent to the MIDI Out socket.
The modes are selected sequentially by pressing the recessed push button – the LED colour indicating which mode is current. Universal power supply included.
